Description
ENGINE TYPE: 4-STROKE
DISPLACEMENT: 149CC
COOLING: AIR COLLING
IGNITION TYPE: C.D.I
NUMBER OF CYLINDER: 1
COMPRESSION RATIO: 10.3:1
BORE AND STROKE: 57.4X57.8
MAX POWER[KW/R/M]: 6.1/7500
MAX TORQUE[N.M/R/M]: 8.3/6300
STARTING: ELECTRIC
GAS TANK CAPACITY [L]: 7
ENGINE OIL CAPACITY[L]: 1
LIGHTING: YES
TOP SPEED [KPH]: 57
BATTERY TYPE: 12V 7AH
ANSMISSION TYPE: AUTOMATIC
DRIVE SYSTEM TYPE: CHIN DRIVE
GEARING: CVT+REVERSE

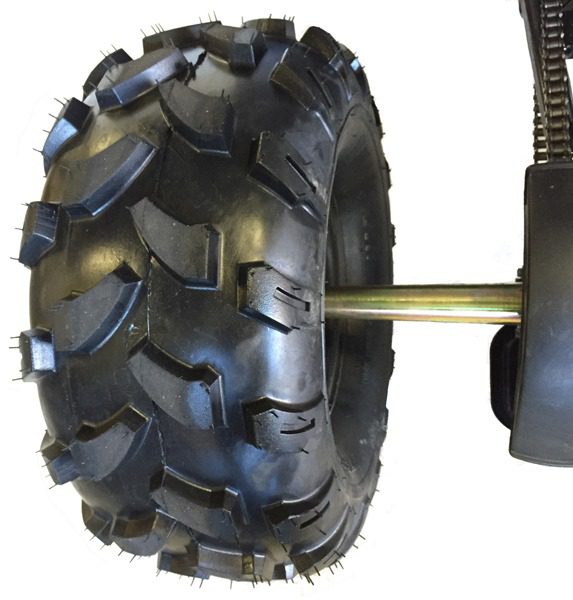

TIRES: FRONT SIZE(‘ 23X7-10 ‘), REAR SIZE(‘ 21X10-10 ‘)
SUSPENSION: FRONT TYPE(DOUBLE SWING ARM WITH DOUBLE SHOCK), REAR (MCPHERSON)
BRAKING: FRONT BRAKE (DROM), REAR BRAKE (HYDRAULIC DISC)
PRODUCT DIMENSIONS: LENGTH [1699 MM], WIDTH [960 MM] & HEIGHT [980 MM]
DRY WEIGHT [155 KG], SEAT HEIGHT [718 MM], WHEELBASE [1079 MM]
WEIGHT CAPACITY [140 KG]
GROUND CLEARANCE [130 MM]
CARTON DIMENSIONS: LENGTH[1680 MM], WIDTH[1150 MM] & HEIGHT[860 MM]
PACKING WEIGHT [175 KG]
CUBIC METER [1.66 M3]
AVAILABLE COLORS: ARMY BLACK, BLACK, BLUE, GREEN & RED
